Sliding Door
Sliding Doors

Sliding Doors

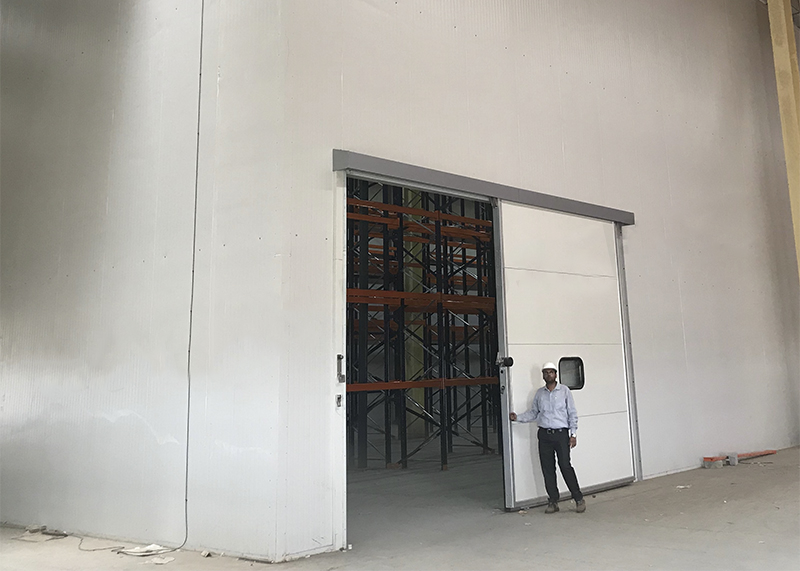

A sliding door is a type of door which opens horizontally by sliding, usually parallel to a wall. Commonly recommended for heavy duty use in cold/freezer rooms and hygiene process areas due to its light weight and greater in efficiency, better in performance. Also, In terms of safety, long service Life and smooth in operation every day. The exterior and interior surfaces are made by polyester coated steel sheets. These doors are manufactured as per the industrial quality standards and are supplied to clients at leading market prices. The door leaf is injected with 40 kg/cum density CFC free polyurethane. Alfa Sliding doors are offered with view glass and accessories. The door installation will be done at site only. These are available in various shapes and sizes to clients as per their requirements. These are priced economically.

General Description of Cold room Sliding Doors

Door Leaf Liner & Outer sheet Material Pre painted GI sheets (Color is Optional) (Other finishes like SS304 available on request)
Liner & Outer Sheet Thickness 0.5mm Thick (Thickness is optional)
Infill insulation Material Injected Poly Urethane Foam (PUF)
PUF Density 40 ± 2 KG/CUM
Edges of Leaf covered material Aluminium Profile
Replaceable Gasket Perimeter Single gasket in EPDM high 30mm Placed into the Leaf
Door Frame Optional (Aluminium or PVC)
Counter Frame Optional (Aluminium or PVC)
Upper & Lower Rail Aluminium profile and adjustable Guide
External & Internal Lever Handle Stainless Steel 304 grade
Heating cable housing Placed on Frame
Pulley Supports In Composite materials
Lock with key and Internal safety release system
Available Thickness of Door Leaf 70 & 120mm
