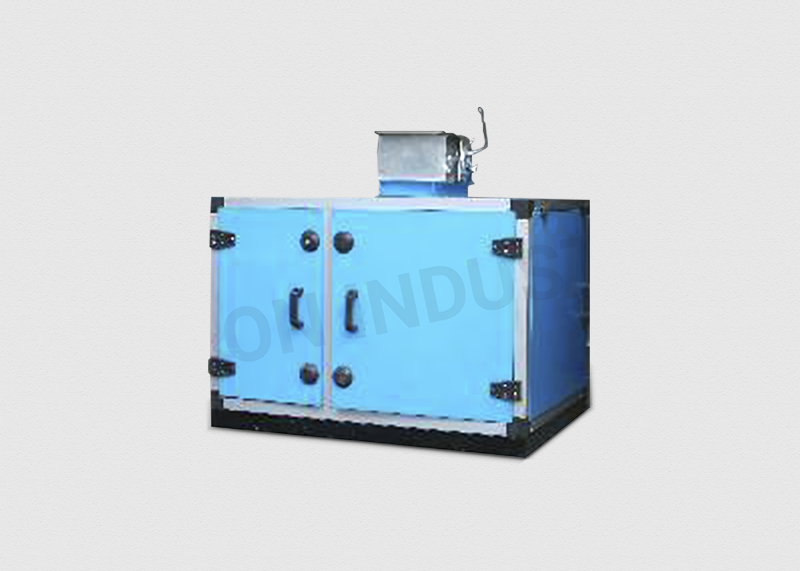

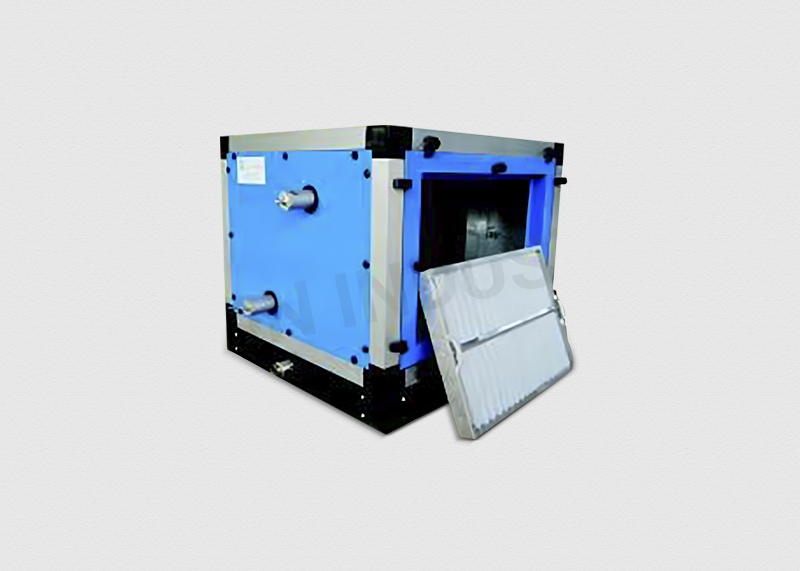

We are a prominent Manufacturer and Exporter of high quality Floor Mounted Air Handling Units. The Floor Mounted Air Handling Units offered by us are widely used in various buildings and hotels. Our Floor Mounted Air Handling Units are appreciated in many industries and clients for their durability and long working life and are available at competitive market prices.
Construction
- The unit is manufactured in Heavy duty extruded aluminum profile with & without Thermal Break & internal coving section
- The unit panels are filled with 25 or 50 mm thick pressure injected polyurethane foam, having 38 / 40 kg / m3 density
- Various options such as pre-coated galvanized sheets, plain galvanized sheets, aluminum & ss 304 & ss 316 sheets in various thickness are available for inner & outer skin of double skin panels
- High efficiency, AMCA certified, Imported DWDI & Plug type blowers are used
- Forward curved blowers for normal applications and backward curved for high resistance application
- Drain pan mode of SS 304 with dual slope to facilitate immediate discharge of condensate
- Base frame is made of galvanized steel with die cast aluminum joints having lifting hotels
- Access doors are provided with hinges & locks made of self extinguishing nylon for perfect air tightness
Specifications :
Options Available
- Weatherproof Light, Limit switch, view glass
- Filters sections for EU-S, EU-7, in rigid / Bag constructions.
- Humidifications, Pre / Re Heat Package.
- Heat recovery wheel / heat pipe.
- Mixing box with fresh / return air dampers
- Single / double tier construction
Capacity Range
- 800 CFM to 10,000 CFM
Applications
- For Shopping Malls, Multiplexes, Small offices, Hotels.
